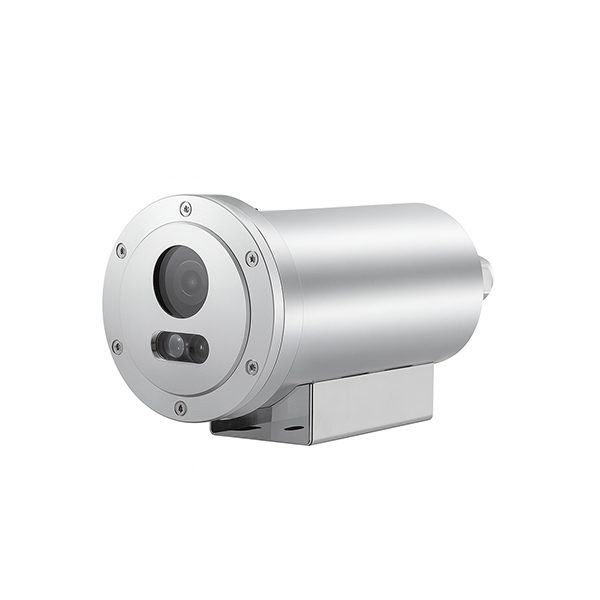

VIZ700-E8504 Explosion-proof Infrared HD Camera

Key Features:

5MP camera
Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db
High-efficiency IR array with up to 50m illumination and long service life.
Supports human-shape and motion detection.
Made of 304/316L stainless steel for use in chemical, acidic, and other highly corrosive environments.

Features

Use environment

It has class IIA, IIBand IIC combustible gases, and the ignition temperature group is zone 1 and zone 2 of T1-T6 group. Places where combustible gases or vapors form explosive mixtures with air,
2. It is also applicable to areas 21 and 22 with ignition temperature group T1-T6 and places containing combustible dust mixture.

Such as: petroleum, chemical industry, mine, military industry, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage, etc.

Technical parameters

Explosion-proof sign	Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db
Levels of protection	IP68
Sensor type	1/2.8″ CMOS
Pixel	5mp
Lens	4mm
Illuminance	Color 0.01 Lux @ (F1.2, AGC ON), 0 Lux infrared light on
Infrared distance	50 Meters
Day and night conversion	ICR infrared filter type
Wide Dynamic	Support for optical-width dynamics
Noise reduction	Support for 2D and 3D noise reduction
Shutter	Support for automatic / manual mode
Privacy cover	Support, up to 4 units
Regional enhancement	Support, up to 8 units
Three yards flow	Support
Standard	28801620@25、25601440@25、23041296@25、19201080@25、1920*1080@30
Resolution ratio	Main code stream: 2880 * 1620 (default), 2560 * 1440,2304 * 1296,1080P, 720P Subcode stream: 720P, D1 (default), 640 * 360,2CIF, CIF Three-yard stream: D1,640 * 360,2CIF, CIF (default)
Video processing	H.264、H.265 Video encoding
Audio processing	Support G.711u、G. 711a Code standard
Noise suppression	Support
Intelligent detection	Support humanoid detection, motion detection and other intelligent detection
Networking protocol	Support for PPPoE, IPv4, IPV6, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, port mapping, etc
Interface protocol	Support for ONVIF standard protocol, GB / T28181 national standard protocol
Audio interface	Support 1 MIC / Line input, 1 audio output（optional）
Communication interface	1 RJ45 10 M / 100 M Adaptive Ethernet port
Temperature range	-40℃~+60℃
Power supply	AC85V ～ 260V/DC12V/POE (optional)
Lightning protection	Power port 2KV lightning protection, network port 4KV lightning protection, in line with the national international standards
Product material	304/316L Stainless Steel material
Inlet hole specifications	1 G3 / 4 ” inlet hole

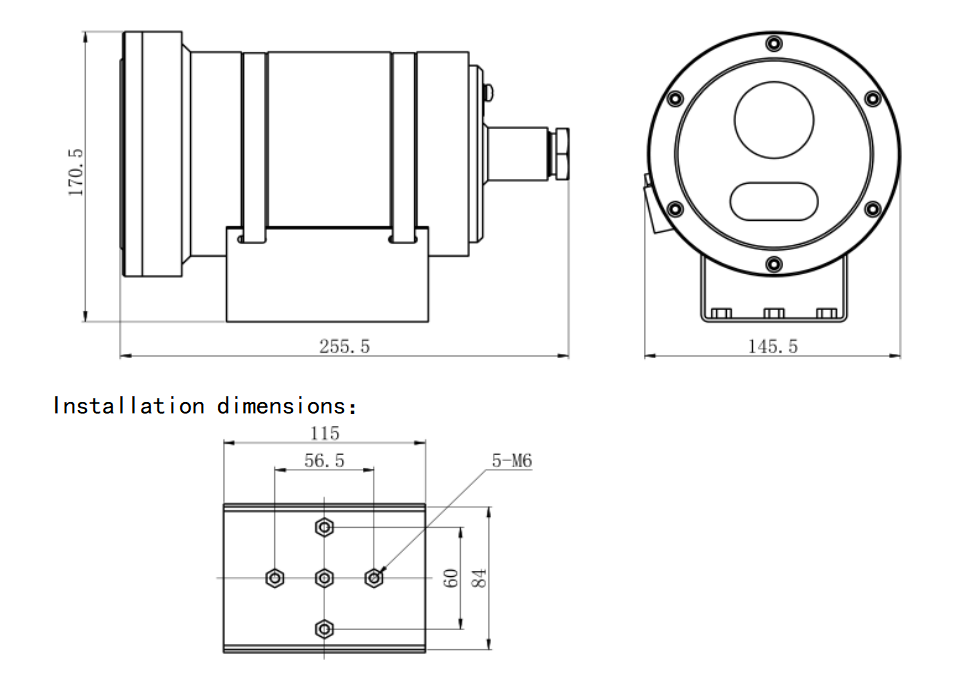

Way to install	Multiple installation options are optional based on the application environment
Product weight	≤6kg
