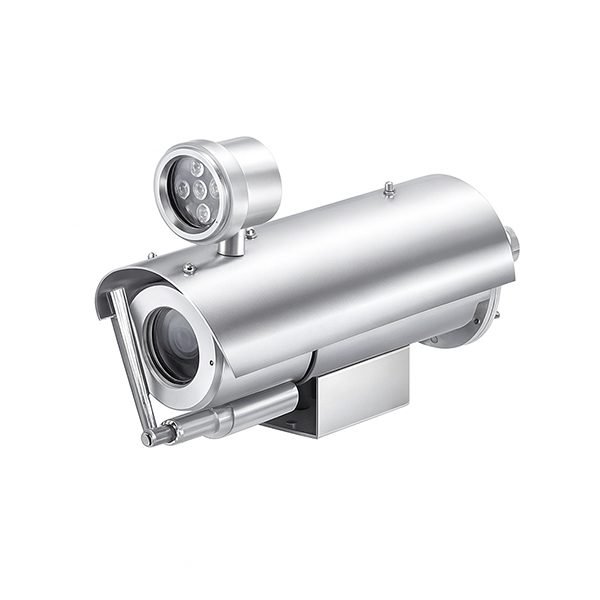

VIZ820-E8425 Explosion-proof Wiper HD Bullet Camera
Key Features:
- 4MP (2560*1440), 25x optical zoom, 16x digital zoom
- Dual explosion-proof certification with ATEX & IECEx, marked Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db.
- Support Timed Capture and Event Capture.
- Support 256G Micro SD / SDHC / SDXC
- Made of 304/316L stainless steel for use in chemical, acidic, and other highly corrosive environments.
Features
Use environment
- It has class IIA, IIBand IIC combustible gases, and the ignition temperature group is zone 1 and zone 2 of T1-T6 group. Places where combustible gases or vapors form explosive mixtures with air,
- 2. It is also applicable to areas 21 and 22 with ignition temperature group T1-T6 and places containing combustible dust mixture.
Such as: petroleum, chemical industry, mine, military industry, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage, etc.
Technical parameters
Explosion-proof sign | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Protection level | IP68 |
Camera | |
Image Sensor | 1/2.8” Progressive Scan CMOS |
Minimum Illumination | Color:0.001 Lux @ (F1.67,AGC ON); B/W:0.0005Lux @ (F1.67,AGC ON) |
Shutter | 1/25s to 1/100,000s; Supports delayed shutter |
Aperture | DC drive |
Lens | |
Focal Length | 5.5-137.5mm, 25x Optical Zoom |
Aperture Range | F1.67-F3.67 |
Horizontal Field of View | 53.6-3.67°(wide-tele) |
Minimum Working Distance | 100mm-1500mm (wide-tele) |
Zoom Speed | Approximately 3.5s (optical, wide-tele) |
General | |
Audio interface | 1 In-1 Out (optional) |
Alarm interface | 1 In-1 Out (optional) |
IR light | 100m |
Network interface | Built-in RJ45 network port, which supports 10M/100M of network data |
Temperature range | -40℃~+60℃ |
Power supply | AC85V ~ 260V/DC 12V /POE (Optional) |
Product material | 304 Stainless steel material |
Specification of the inlet hole | 2 G3/4″ inlet holes |
Installation mode | Multiple installation methods can be selected according to the application environment |
Product weight | ≤9kg |
Explosion-Protected Cameras
Certified for hazardous areas, ExVizo cameras deliver reliable monitoring and safety in Zone 1/Division 1 & 2 environments.Built for performance and durability, they provide clear visibility and peace of mind across industries such as oil & gas, chemical, and marine.
Certified for hazardous areas
Discover more explosion-proof cameras
Certified for hazardous environments, ExVizo offers a full range of explosion-proof cameras and accessories—ideal for reliable monitoring in Zone 1 and Zone 2 areas.
- Exd IIC T6 Gb/Ex tDA21 IP68 T80°
- AC 85–260V, optional DC 12V or PoE
- Lightning, surge protection(316L)
- 5MP camera
- Ex db IIC T6 Gb / Ex tb IIIC T80℃ Db
- High-efficiency IR array, 50m illumination.
- Dual ATEX & IECEx explosion-proof certification
- 4MP, 25x optical zoom, 16x digital zoom
- Exd IIC T6 Gb/Ex tDA21 IP68 T80°
- Pan 0.1–180°/s, tilt 0.1–80°/s
- 4MP, 25x optical zoom, 16x digital zoom
- Exd IIC T6 Gb/Ex tDA21 IP68 T80°
- Dual ATEX & IECEx explosion-proof certification
- 4MP, 4x Optical Zoom, 16x Digital Zoom
- 384×288 thermal imaging, 8–14µm band, NETD <35mK
- Dual ATEX & IECEx explosion-proof certification
- 4MP, 25x optical zoom, 16x digital zoom
- Multi-angle fog/bright IR array with low power and up to 100m illumination
